Description
- Hign-concerned Chemical: None
- Is Electric: No battery
- Size: as show
- Technical parameters: Value 10
- Model Number: EV800D 5.8G 40CH
- For Vehicle Type: Helicopters
- Tool Supplies: FPV Goggles
- Four-wheel Drive Attributes: FPV Goggles
- Remote Control Peripherals/Devices: FPV Goggles
- Upgrade Parts/Accessories: FPV Goggles
- RC Parts & Accs: FPV Goggles
- Material: Composite Material
- Brand Name: EACHINE
- Origin: Mainland China
- Recommend Age: 14+y
- Use: Vehicles & Remote Control Toys
- Certification: None
Eachine EV800D 5.8G 40CH Diversity FPV Goggles 5 Inch 800*480 Video Headset Build in HD DVR 7.4V 1200mAh Battery
Description :
Brand Name : EACHINE
Item Name : EV800D
|
Appearance |
Dimension: 180*145*82mm |
|
Specification |
Build in DVR |
|
Diversity |
-90dB Super sensitiveness in 2pcs RX5808 PRO modules |
|
Display |
Screen size: 5.0 inch |
|
Lens |
3x boost of the video to acquire intense feel-in-there video; |
|
Battery |
Built-in 7.4V/1200mAh battery; |
Frequencies (5.8GHz, with RaceBand)
|
CH |
CH 1 |
CH 2 |
CH 3 |
CH 4 |
CH 5 |
CH 6 |
CH 7 |
CH 8 |
|
GROUP |
||||||||
|
Aor FR1 |
5865 MHZ |
5845 MHZ |
5825 MHZ |
5805 MHZ |
5785 MHZ |
5765 MHZ |
5745 MHZ |
5725 MHZ |
|
Bor FR2 |
5733 MHZ |
5752 MHZ |
5771 MHZ |
5790 MHZ |
5809 MHZ |
5828 MHZ |
5847 MHZ |
5866 MHZ |
|
Cor FR3 |
5705 MHZ |
5685 MHZ |
5665 MHZ |
5645 MHZ |
5885 MHZ |
5905 MHZ |
5925 MHZ |
5945 MHZ |
|
Dor FR4 |
5740 MHZ |
5760 MHZ |
5780 MHZ |
5800 MHZ |
5820 MHZ |
5840 MHZ |
5860 MHZ |
5880 MHZ |
|
Ror FR5 |
5658 MHZ |
5695 MHZ |
5732 MHZ |
5769 MHZ |
5806 MHZ |
5843 MHZ |
5880 MHZ |
5917 MHZ |
Features:
Built-in with superHD DVRup to 720*576px resolution
Diversity RaceBand 40ch Auto-Searching
Two system (Display/Re cord duo core separated chipsets ) ensure no delay in displaying and no frame lost in recording(please use C10 super speed card to ensure the full frame recording)
Work friendly with p ilot-OSD, no block on the important flying OSD information;

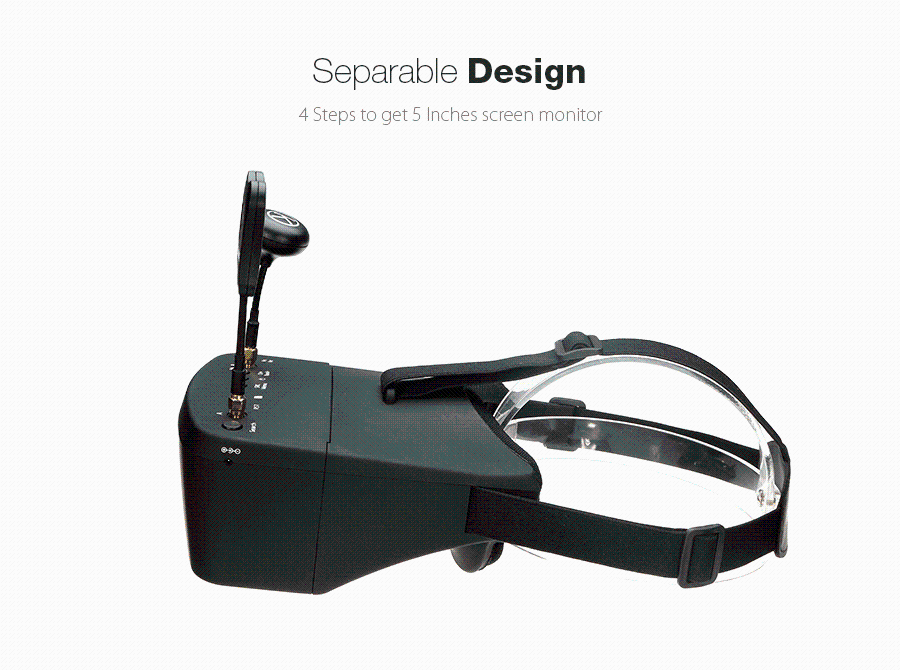

Separable design, 5 inch screen can be used as small monitor on radio controller or with tripod;
HD high brightness 5 inch LCD specially tuned for FPV racing;
Diversity function, Built-in super sensitive 5.8GHz 40ch receiver module, with RaceRand;
Advanced auto-searching function and the working frequency show on screen;
Built-in 7.4V 1200mAh battery, each full charge offer 2 hours working time;
Wide range re-charge voltage 11-20V;
Accept 2S or 3S batteries as back-up power source, to prolong the working time;
Nice ergonomic design and fit different faces;
Super-wide visible angle up to 82 degree;
92% transparent lens adopted, no distort, no blur on the edge of screen;
Light weight 375g with 3.5 hr 1200mAh battery, RTF for any scale racing game;
5 Inch 800*480px HD high brightness LCD
Package Included :
1 x EV800D 40CH 5.8G Diversity Goggles with DVR
1 x Clover Antenna
1 x Panel Antenna
1 x Battery Charger
1 x 3S to DC Power Cable
1 x User Manual
1 x Clean cloth
1 x Bag
