Description
Note:
The battery will be changed to an 18650 battery case to facilitate transport, and it doesn’t have a balance plug for the DVR module, the DVR module should use another power supply, thank you for your understanding!
The receiver on EV100 Goggles doesn’t receive audio. But the goggles support audio input, so you can hear the audio if input the video to goggles.
Description：
Brand Name: Eachine
Item Name: EV100
Size: 165mm*76mm*30mm
Weight : 221g(with battery 57g and antenna 13g)
Package Weight: 400g
Display
Resolution: 720*540
FOV: 28° diagonal
IPD: 58-68mm
Ratio: 4:3
Focal length adjusting: under 400 degrees of myopia and hyperopia 150 degrees

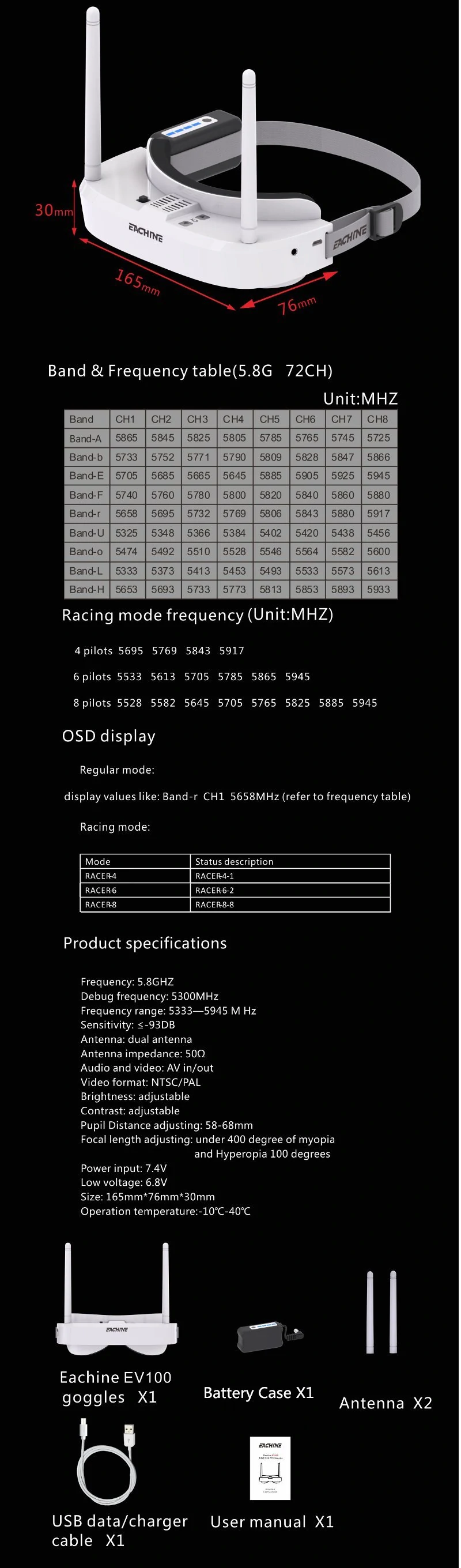

Specification
Frequency: 5.8G 5333Mhz-5945Mhz
Sensitivity : <=-93dB
Antenna Impedance: 50Ω
Antenna Gain: 3dBi
Antenna Connector: RP-SMA
Video Formate : NTSC/PAL
Support AV IN/OUT
Support Focal Length/Brightness/Contrast Adjustment
Suport Firmware Upgrading
Power Input: 7.4V
Low Voltage: 6.8V

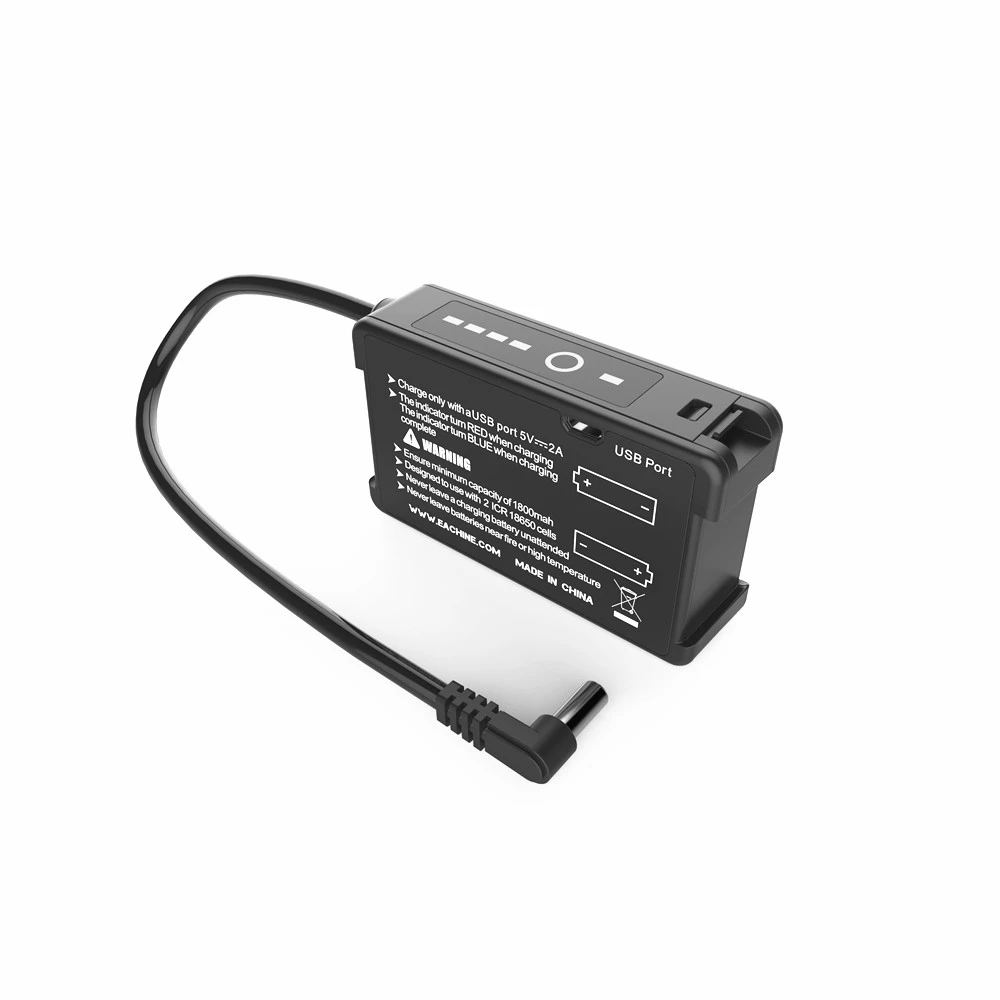

Battery: 18650 battery case
Charging : USB Cable(not included)
Working Temp. : -10℃-+40℃
Features ：

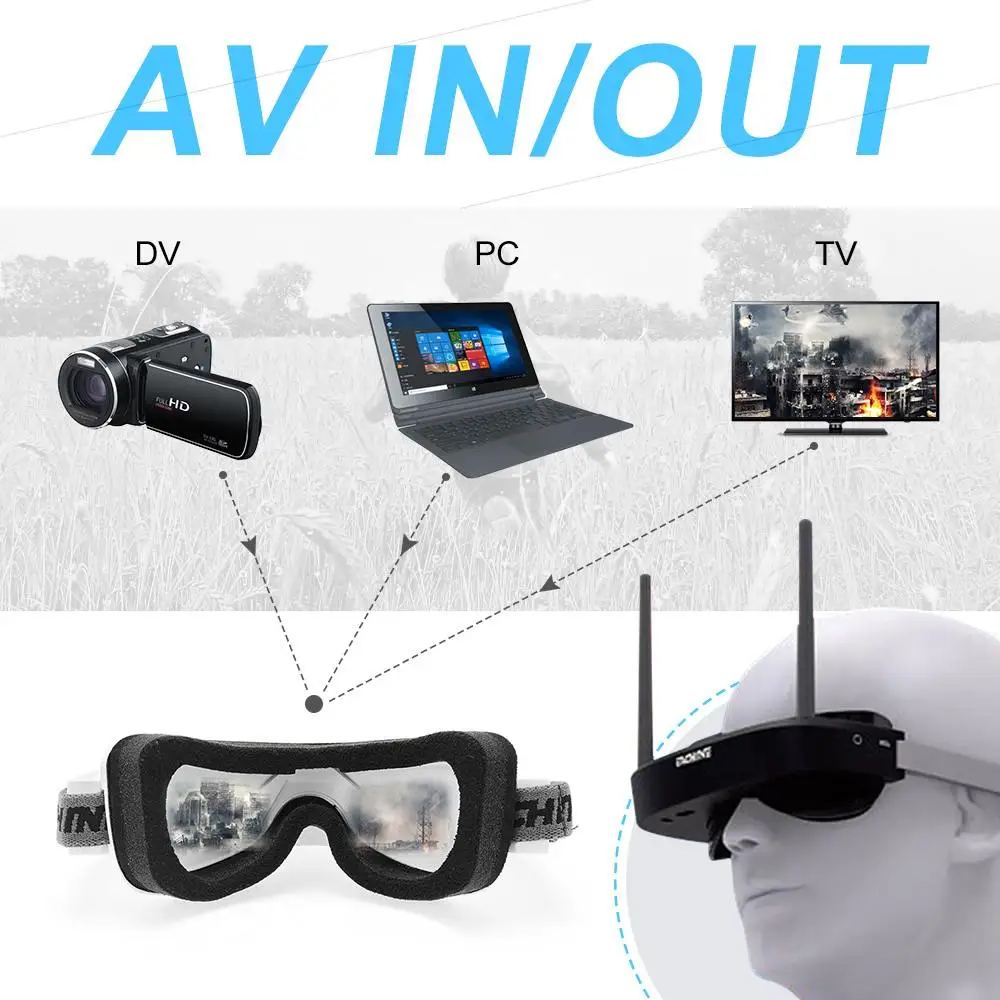

Support AV Input and Output( it doesn’t support Audio in FPV mode, for the built-in receiver can’t receive audio. But in AV-IN mode, the audio is available.)
Support External DVR module

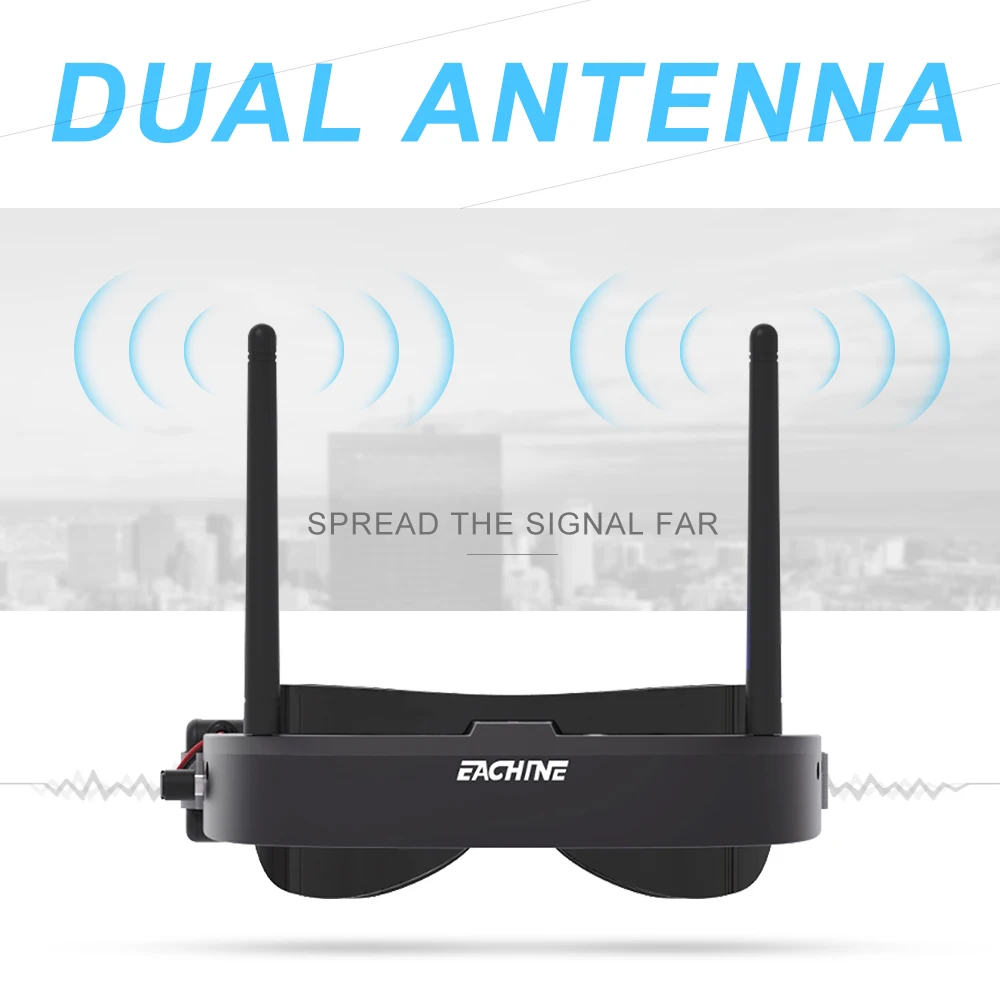

A single receiver with Dual Antennas enhances the reception and stable performance.
With Fan, can defog the glasses for a good visual experience.
Adjustable focal length allows pilots under 400-degree myopia to view directly via the naked eye
Adjustable IPD 58~68mm
The Auto Search function, can auto-search all frequencies and select the channel of the strongest signal.
Has 3 Racing Modes: 4/6/8 pilots. The 60-80MHz interval between adjacent channels greatly decreases interference.
Has Debug Mode, requires a corresponding VTX which supports pit mode and extra frequency 5300MHz
Recommended Parts（Not included）
FPV VTX: 5.8Ghz VTX
Tiny FPV Camera: 5.8Ghz Camera

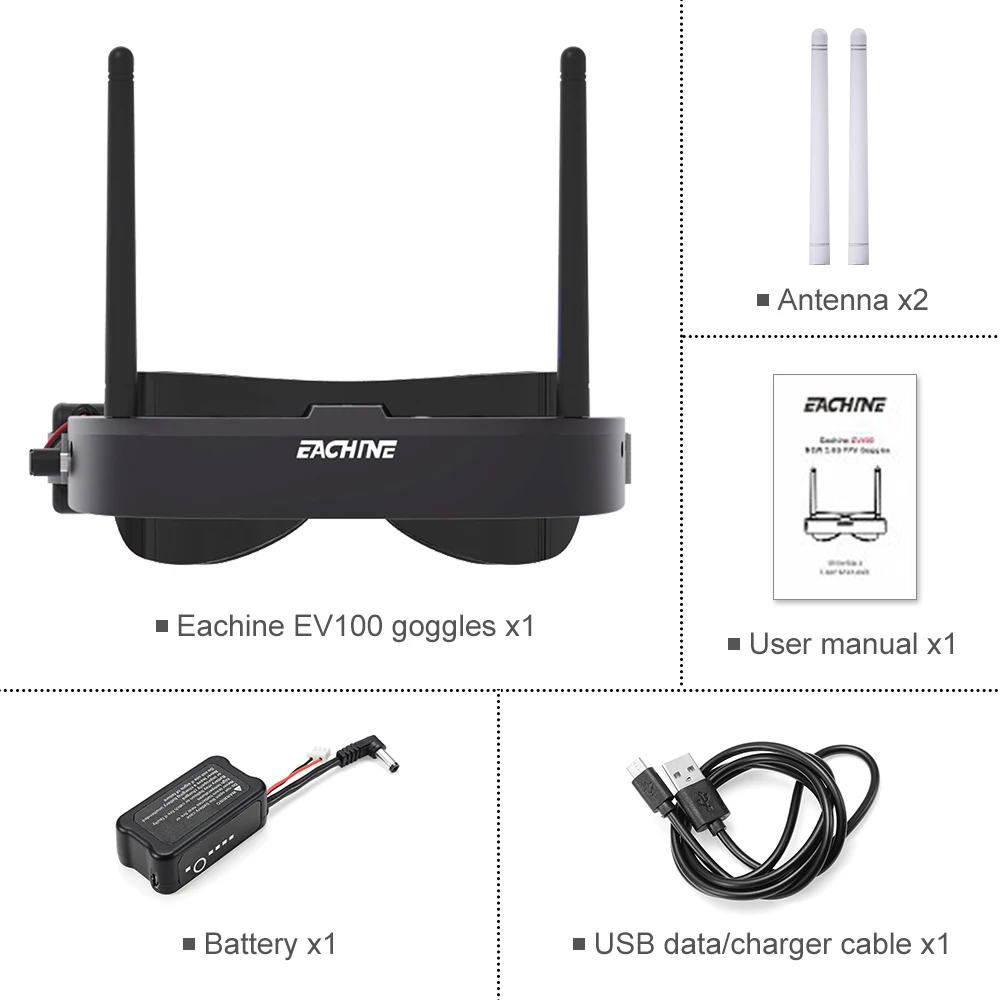

Package Included：
1 x Eachine EV100 5.8G 72CH FPV Goggles
1 x 18650 Battery case
2 x RP-SMA 3dBi Antenna
1 x User Manual
